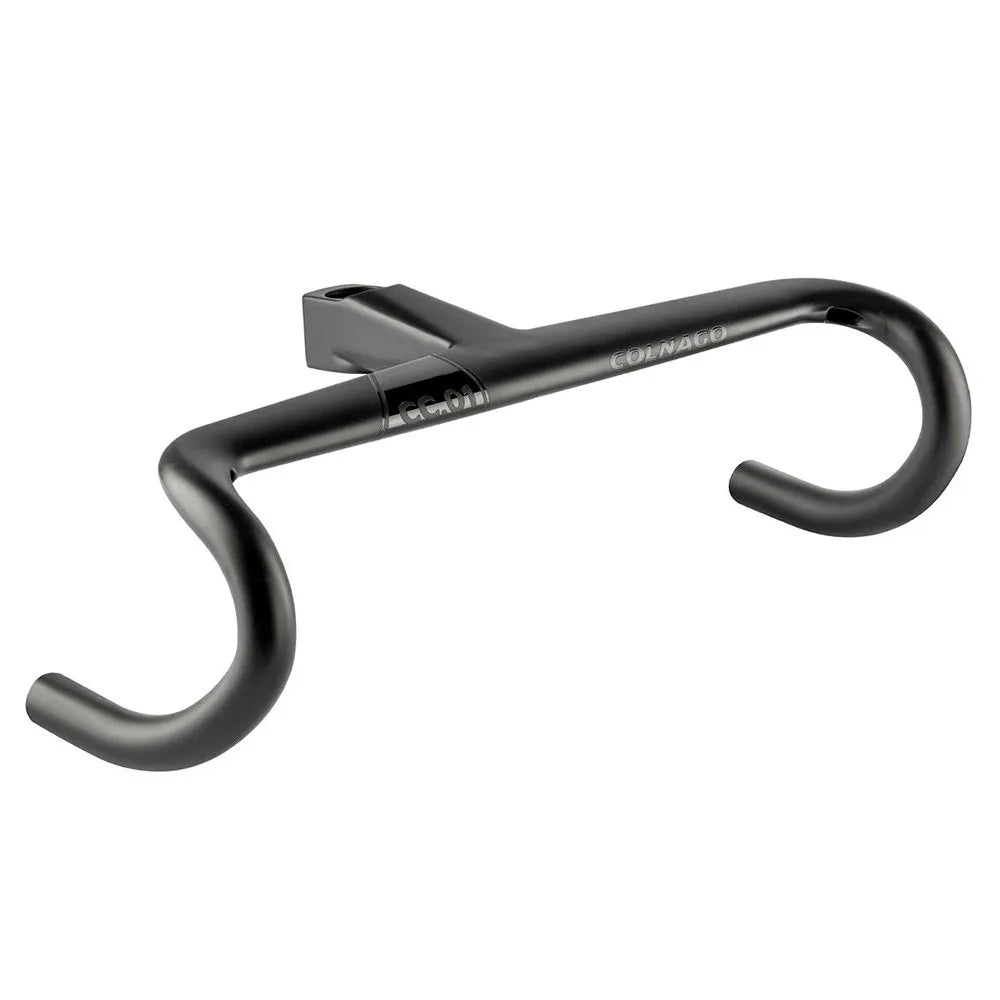

Colnago CC.01 Integrated Handlebar
Couldn't load pickup availability
Alongside the launch of the new C68, Colnago have released a new integrated handlebar, the CC.01. Made from a single piece, monocoque construction, the CC.01 is rigid and lightweight making it the perfect companion for the C68.

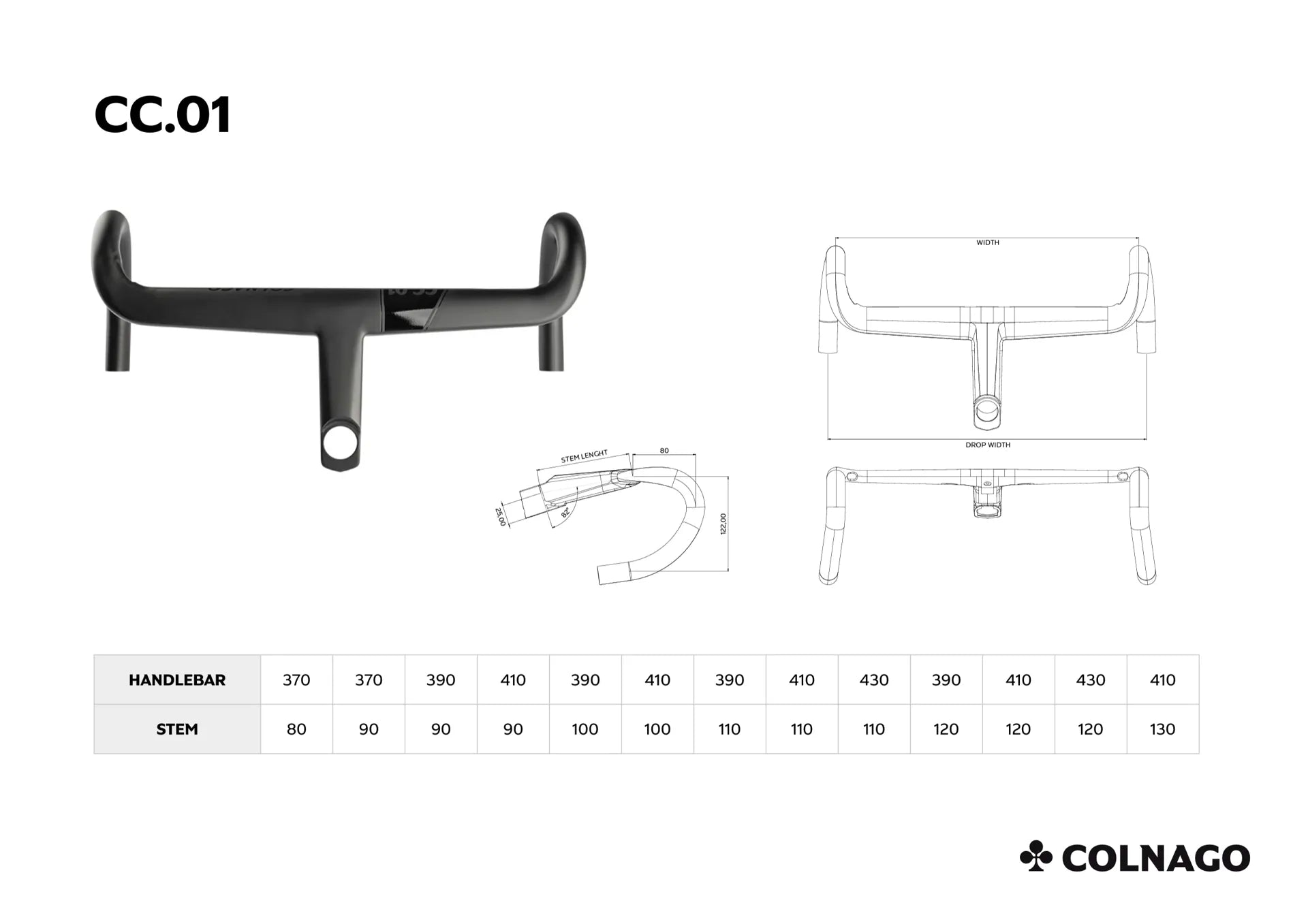

In addition to the clever design and technical features, the CC.01 has been created to guarantee the widest possible range of options for a precise fit. There are 16 combinations of sizes available.
The stem length starts from 80mm and goes up to 140mm. For handlebar width, it is important to note that the measurements are not typical, using odd sizes instead of the more traditional even ones.
The shape of each handlebar includes a small 2cm flare at the drops. Therefore a 41cm measured at the levers will have a width of 43cm at the drops.
The CC.01 has a drop of 122mm and a reach of 80mm. The only size that has a different geometry is the 37, which has a drop of 119mm, a reach of 75mm and a flare of 14mm.
WHAT'S INCLUDED
The installation kit is NOT provided.
The product is only for of V4rs and C68 bikes, from which you can get the kit with expanders, spacers and adapters to complete the installation.
