Colnago Y1Rs Disc FRAMESET - YSWW
Couldn't load pickup availability

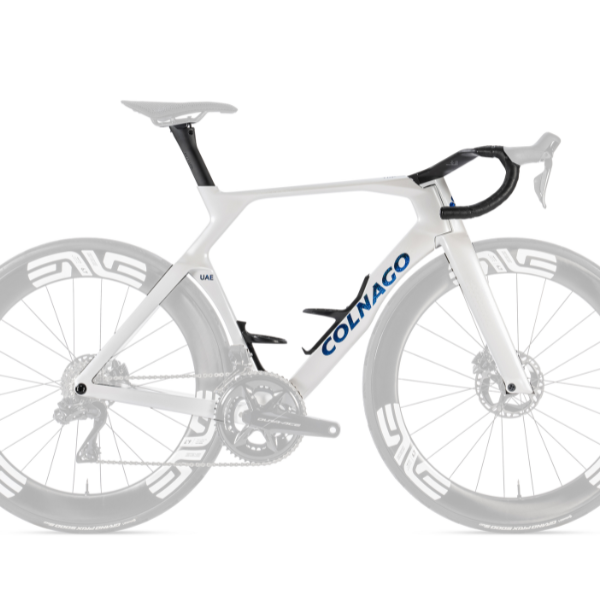

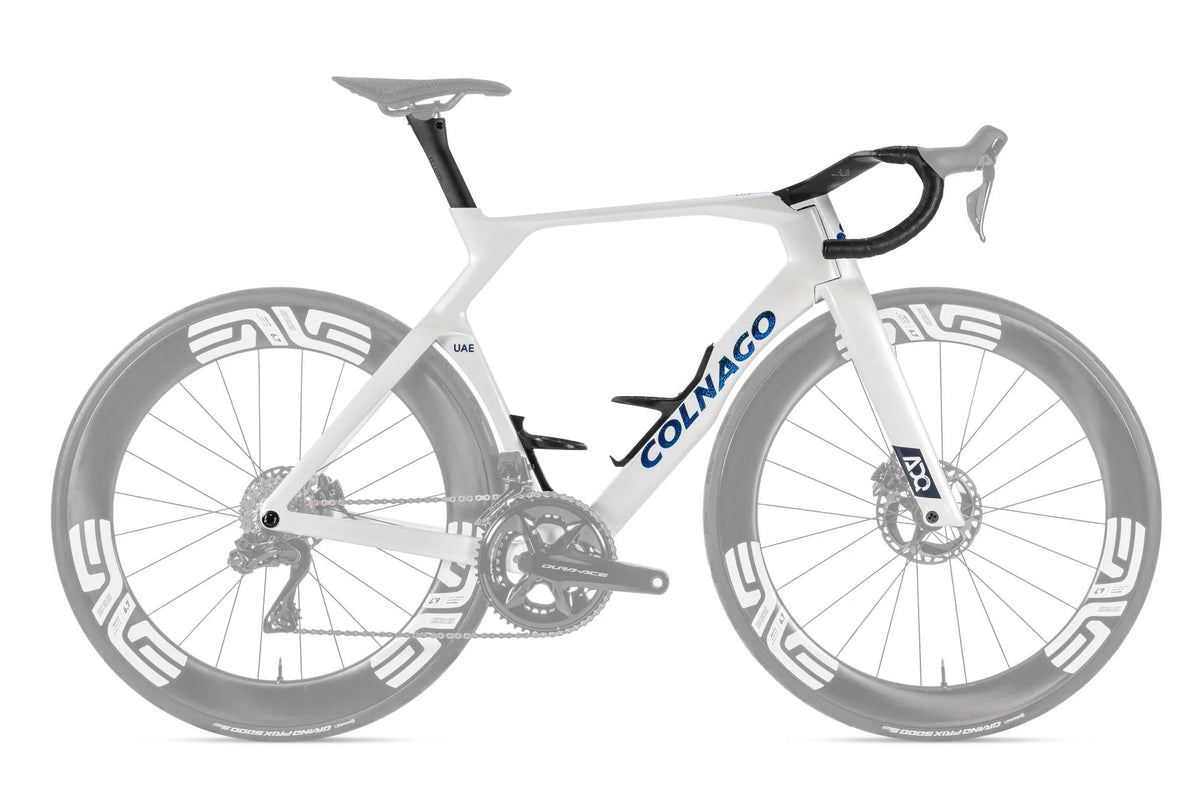

Colnago Y1Rs Disc FRAMESET - YSWW
Colnago Y1Rs – Colnago's Ultimate Aero Race Bike
The Colnago Y1Rs YSWW Frameset represents the cutting edge of Colnago aerodynamic road-bike development: an uncompromising carbon race platform created to turn every possible watt into speed.
Developed for the fastest races in professional cycling and proven at WorldTour level with Tadej Pogačar and UAE Team Emirates-XRG, the Y1Rs combines extreme aerodynamic efficiency with exceptional stiffness, precise handling and the unmistakable character of a Colnago.
The YSWW colourway combines a clean white base with refined blue detailing, creating an elegant yet unmistakably race-focused appearance that highlights the radical aerodynamic shapes of the Y1Rs.
For riders looking for a Colnago aero bike, premium carbon road frameset or the same Y1Rs platform raced by Tadej Pogačar, this is Colnago engineering at its fastest.
DESIGNED FOR PURE SPEED
The Y1Rs was developed around one objective: reduce aerodynamic resistance without compromising the performance expected from a WorldTour race bike.
Compared with the Colnago V4Rs, the Y1Rs reduces frontal area by 19%. The radical frame shapes, curved downtube, bayonet-style fork and integrated front end have all been designed around controlling airflow as efficiently as possible.
Wind-tunnel testing by Colnago showed that the Y1Rs requires approximately 20 watts less than the V4Rs to maintain 50 km/h in tested real-world configurations.
For fast road races, breakaways, flat and rolling terrain, high-speed group rides and riders who simply want maximum aerodynamic performance, those gains matter.
THE COLNAGO RACED BY TADEJ POGAČAR
The Y1Rs is no ordinary aero road bike.
It is part of the race-bike arsenal of Tadej Pogačar and UAE Team Emirates-XRG, developed and validated in WorldTour competition.
Pogačar has used the Y1Rs at the highest level of professional cycling, including the Tour de France. This is a race platform developed for the speeds and demands of modern professional cycling.
From WorldTour racing to your own fastest rides, the objective remains the same: maximum speed from every watt.
972 G CARBON AERO FRAME
Creating an aero bike is always a balancing act between aerodynamic performance, stiffness and weight.
According to Colnago's Y1Rs technical data, the ready-to-paint Y1Rs frame weighs approximately 972 g, before paint and removable parts. The dedicated aerodynamic fork weighs approximately 450 g, giving a combined frame-and-fork weight of approximately 1,422 g before paint and removable components.
Rather than chasing frame weight alone, Colnago has engineered the Y1Rs as a complete aerodynamic system where every gram has to justify itself through stiffness, handling or aerodynamic performance.
The result is a genuine aero race machine built for the speeds where aerodynamic drag becomes the dominant resistance.
3.5% GREATER STIFFNESS
Aerodynamics only matter if the power reaches the road.
The Y1Rs frame structure has been engineered to provide 3.5% greater stiffness than the V4Rs in Colnago's sprint-position testing, creating immediate power transfer during hard acceleration and sprint efforts.
Push harder and the Y1Rs responds.
That combination of aerodynamic efficiency and stiffness makes the Y1Rs particularly effective when speeds rise: attacking, sprinting, closing gaps or driving a fast group across flat and rolling terrain.
CC.Y1 INTEGRATED AERO COCKPIT
One of the defining elements of the Y1Rs is Colnago's extraordinary CC.Y1 integrated cockpit with WYND© technology.
Its distinctive gull-wing profile has been developed to minimize airflow separation while improving stability at high speed.
Rather than treating the handlebar and frame as separate components, Colnago has designed the Y1Rs front end as one aerodynamic system.
The result is one of the most distinctive silhouettes in modern road cycling — and an aero cockpit created for serious speed.
DEFY SEATPOST JUNCTION
The unmistakable double-Y junction around the seatpost is more than a visual statement.
Colnago's DEFY seatpost junction is designed to improve aerodynamic performance around the rear of the frame while helping absorb road vibration.
The dedicated carbon Y1Rs seatpost weighs approximately 190 g, has a 300 mm length and is available in 0 mm or 15 mm setback versions.
This allows the Y1Rs to combine the stiffness required for explosive racing with the comfort and adjustability needed during long rides and demanding race days.
UP TO 32 MM TYRE CLEARANCE
Modern speed isn't only about narrow tyres.
The Colnago Y1Rs accommodates tyres measuring up to 32 mm actual width, with Colnago specifying 4 mm of required clearance around the tyre.
This gives riders the freedom to use modern high-volume performance tyres and optimise rolling resistance, grip and comfort according to road conditions and wheel choice.
BSA THREADED BOTTOM BRACKET
Despite the futuristic appearance of the Y1Rs, Colnago has chosen a proven and practical BSA 68 mm threaded bottom bracket.
For owners and mechanics, this provides straightforward servicing and compatibility with a wide range of premium bottom bracket solutions.
UDH COMPATIBILITY
The Y1Rs uses the modern UDH – Universal Derailleur Hanger – standard.
This provides a widely supported derailleur-hanger solution while helping future-proof the frame for modern drivetrain technology.
FULLY INTEGRATED ELECTRONIC DRIVETRAIN DESIGN
The Y1Rs is designed around modern electronic and wireless road groupsets, allowing Colnago to optimise the frame and cockpit around completely integrated cable routing.
Brake hoses are routed internally through the CC.Y1 cockpit and frame, leaving the front of the bike exceptionally clean.
The result is improved aerodynamics together with the minimalist appearance expected from a flagship modern race bike.
COLNAGO Y1Rs YSWW TECHNICAL SPECIFICATIONS
Model: Colnago Y1Rs
Colour: YSWW – White / Blue
Category: Aero Road / Race
Frame: Colnago Y1Rs carbon monocoque aero frame
Frame Weight: Approx. 972 g ready-to-paint, before paint and removable parts
Fork: Colnago Y1Rs carbon bayonet-style aerodynamic fork
Fork Weight: Approx. 450 g
Frame + Fork Weight: Approx. 1,422 g before paint/removable components
Frame Sizes: XS / S / M / L / XL
Wheel Size: 700C
Maximum Tyre Width: 32 mm actual width with 4 mm required clearance
Bottom Bracket: BSA 68 mm threaded
Rear Derailleur Hanger: UDH – Universal Derailleur Hanger
Front Axle: 12 x 100 mm thru-axle
Rear Axle: 12 x 142 mm thru-axle, UDH thread
Rear Brake Mount: Flat Mount disc; 140 mm rotor / 160 mm with spacer
Front Brake: 160 mm disc configuration
Cable Routing: Fully internal
Drivetrain Compatibility: Designed for electronic/wireless groupsets
Cockpit: Colnago CC.Y1 integrated aero cockpit with WYND© technology
Seatpost: Colnago Y1Rs custom aerodynamic carbon seatpost
Seatpost Weight: Approx. 190 g
Seatpost Length: 300 mm
Seatpost Setback: 15 mm standard / 0 mm option available
Seatpost Clamp: Custom Colnago Y1Rs pushing-block system
Maximum System Weight: 120 kg – rider + bicycle + equipment/load
Bottle Cages: Dedicated aerodynamic Y1Rs bottle-cage integration
Aerodynamic Development: CFD, prototyping, wind-tunnel validation and WorldTour testing
Frontal Area: 19% reduction versus V4Rs
Aerodynamic Performance: Approx. 20 W lower power requirement at 50 km/h versus V4Rs in Colnago's tested configurations
Stiffness: 3.5% greater stiffness in Colnago's sprint-position comparison with V4Rs
WHAT IS INCLUDED WITH THE COLNAGO Y1Rs FRAMESET?
The Y1Rs frameset is designed as a highly integrated system rather than simply a frame and fork.
The package centres around the:
- Colnago Y1Rs carbon frame
- Y1Rs aerodynamic carbon fork
- CC.Y1 integrated aero cockpit
- Y1Rs aerodynamic carbon seatpost
- Headset components
- Dedicated aerodynamic bottle-cage system
- Frame-specific integration components
Cockpit dimensions should be selected according to rider fit and availability.
Contact King of the Watts if you need help choosing the correct Y1Rs frame size, CC.Y1 cockpit configuration or components for a complete custom build.
YSWW – WHITE & BLUE
The YSWW finish gives the radical Y1Rs design a particularly elegant appearance.
Colnago combines white and blue in a subtle contrast, creating a colourway that is sophisticated up close while remaining unmistakable on the road.
The sculpted frame profiles, distinctive seat-tube junction, curved downtube and aggressive front end make the Y1Rs instantly recognizable even before you see the Colnago name.
Italian design meets WorldTour aerodynamics.
WHY CHOOSE THE COLNAGO Y1Rs?
The Y1Rs is for riders looking for a road bike where aerodynamic performance takes priority without sacrificing the handling and responsiveness required from a true race bike.
Its highlights include:
- Approximately 972 g ready-to-paint carbon frame
- WorldTour-proven aero race platform
- Raced by Tadej Pogačar
- Developed and tested at the highest level with UAE Team Emirates-XRG
- 19% smaller frontal area versus V4Rs
- Approximately 20 W saving at 50 km/h in Colnago's wind-tunnel comparison
- 3.5% greater stiffness in Colnago's sprint-position testing
- CC.Y1 integrated cockpit with WYND© technology
- DEFY aerodynamic seatpost junction
- Fully internal cable routing
- Up to 32 mm tyre clearance
- BSA 68 mm threaded bottom bracket
- UDH derailleur-hanger standard
- Five frame sizes from XS to XL
- Dedicated aerodynamic bottle-cage integration
COLNAGO Y1Rs YSWW – BUILT TO DEFY WIND
The Colnago Y1Rs YSWW Frameset brings together advanced aerodynamics, WorldTour-developed carbon engineering and unmistakable Italian design in one extraordinary race platform.
It is a bike developed for the fastest races in cycling, tested at the highest level and raced by Tadej Pogačar and UAE Team Emirates-XRG.
For riders searching for a Colnago Y1Rs frameset, Colnago aero bike, carbon aero road bike, Colnago race bike or Tadej Pogačar bike, the Y1Rs sits at the very top of Colnago's aerodynamic road-bike range.
Built to Defy Wind. Built for Speed. Built to Race.

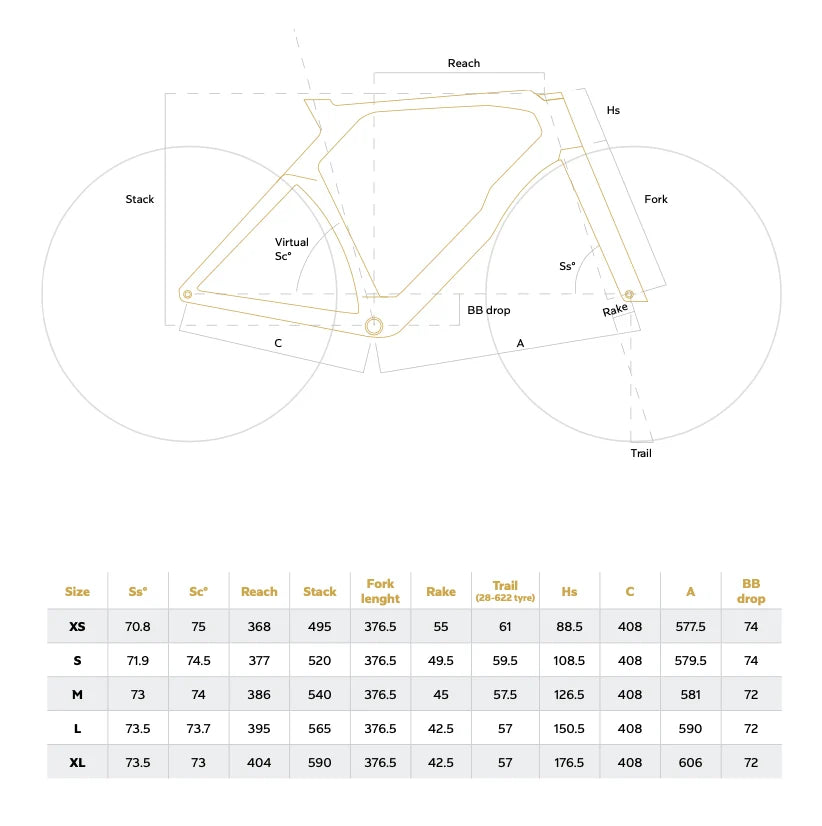

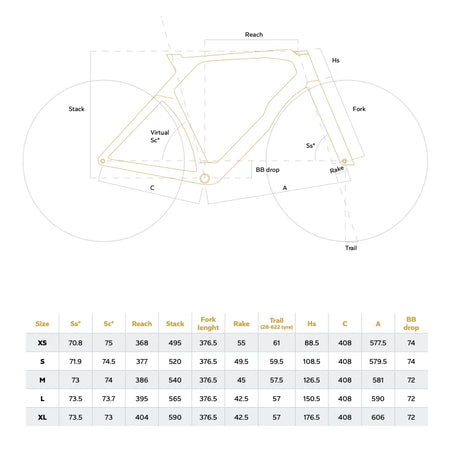

COLNAGO Y1RS SIZING CHART - GEOMETRY
